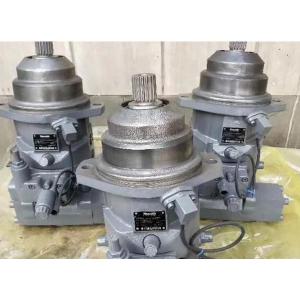

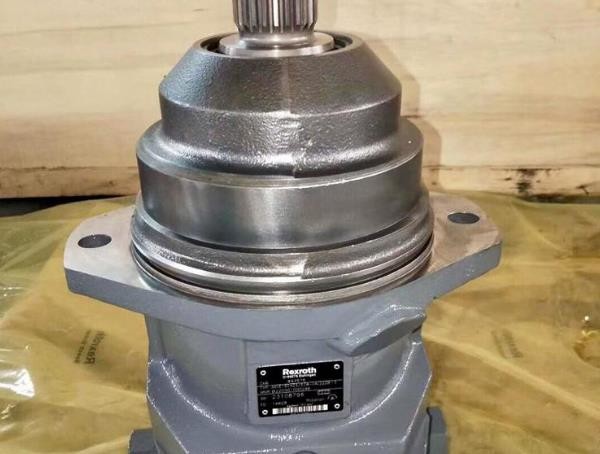

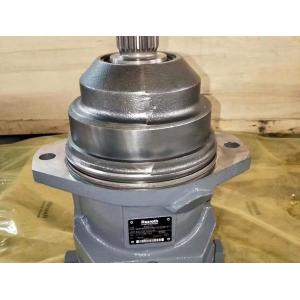

Axial piston variable motor A6VE series 6X
High pressure motor for integration in mechanical gearboxes
Series 65: size 55 … 200
series 63: size 28, 250
Nominal pressure up to 400 bar
Maximum pressure up to 450 bar
Open and closed circuits
Features
Space-saving construction due to recessed mounting flange
Easy to install, simply slide into the mechanical gearbox
Wide control range (can be swiveled to zero)
Approved for very high speeds
High torque
Optional with attached flushing and boost-pressure valve
Optional with integrated or attached counterbalance valve
Bent-axis design
Table of values
|
Size
|
28
|
55
|
80
|
107
|
160
|
200
|
250
|
|
Series
|
63
|
65
|
65
|
65
|
65
|
65
|
63
|
|
Displacement
|
|
Vg max
|
cm³
|
28.1
|
54.8
|
80
|
107
|
160
|
200
|
250
|
|
Vg x
|
cm³
|
18
|
35
|
51
|
68
|
61
|
76
|
188
|
|
Vg min
|
cm³
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
|
Nominal pressure
|
|
pnom
|
bar
|
400
|
400
|
400
|
400
|
400
|
400
|
350
|
|
Maximum pressure
|
|
pmax
|
bar
|
450
|
450
|
450
|
450
|
450
|
450
|
400
|
|
Maximum speed
|
at Vg max 1)
|
nnom
|
rpm
|
5550
|
4450
|
3900
|
3550
|
3100
|
2900
|
2700
|
|
at Vg < Vg x
|
nmax
|
rpm
|
8750
|
7000
|
6150
|
5600
|
4900
|
4600
|
3300
|
|
at Vg min
|
nmax 0
|
rpm
|
10450
|
8350
|
7350
|
6300
|
5500
|
5100
|
3300
|
|
Inlet flow 2)
|
at Vg max and nnom
|
qV nom
|
l/min
|
156
|
244
|
312
|
380
|
496
|
580
|
675
|
|
Torque
|
at Vg max and pnom
|
M
|
Nm
|
179
|
349
|
509
|
681
|
1019
|
1273
|
1391
|
|
Weight (approx.)
|
|
m
|
kg
|
16
|
28
|
36
|
46
|
62
|
78
|
110
|
