Rexroth 4WRZ Series Proportional Directional Valves

Ask Lasest Price
Brand Name :	Rexroth
Model Number :	4WRZ32E1-360-7X/6EG24N9TK4/D3M 4WRZ32E520-5X/6A24NEK4/V 4WRZ32W1-520-5X/6A24NETZ4/D3M 4WRZ32W6-520-7X/6EG24N9TK4/M
Price :	US$1500-$1800
Payment Terms :	T/T, Western Union
Supply Ability :	100PCS per month
Delivery Time :	7-10days

Add to Cart

Product Details
Company Profile

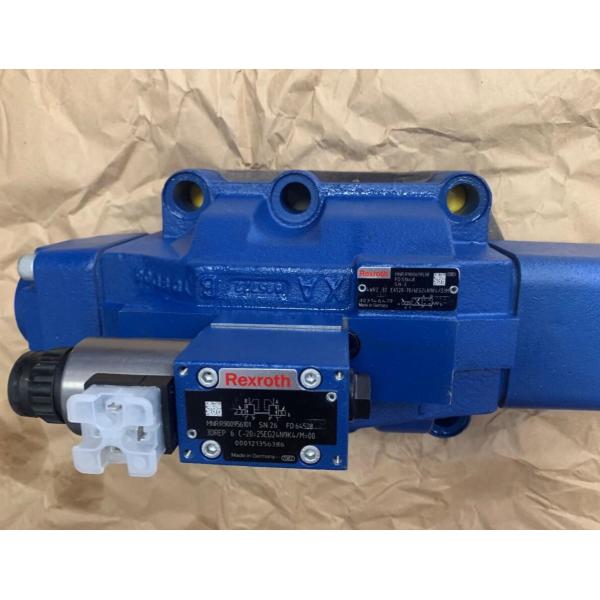

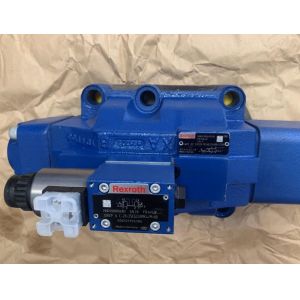

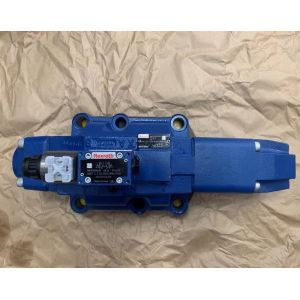

Rexroth 4WRZ Series Proportional Directional Valves

Rexroth 4WRZ Series Proportional Directional Valves, pilot operated without Electrical position feedback,without integrated electronics (OBE)

Size 10, 16, 25, 32, 52
Component series 7X
Maximum operating pressure 350 bar
Maximum flow 2800 l/min

Features

Pilot-operated 2-stage proportional directional valve without integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Optional auxiliary operating device
Spring-centered control spool

Type code

01	4 main ports	4
02	Proportional directional valve with electro-hydraulic operation and external electronics	WRZ
03	Size 10	10
	Size 16	16
	Size 25	25
	Size 32	32
	Size 52	52
04	Symbols; for the possible version, see "Symbols/Circuit diagrams"	E; E1-; E3-; W6-; W8-; W9-; EA; W6A
Rated flow NG10
05	25 l/min	25
	50 l/min	50
	90 l/min	85
Rated flow NG16
05	100 l/min	100
	125 l/min	125
	150 l/min	150
	180 l/min	180
Rated flow NG25
05	220 l/min	220
05	325 l/min	325
Rated flow NG32
05	360 l/min	360
05	520 l/min	520
Rated flow NG52
05	1000 l/min	1000
06	Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions)	7X
07	For subplate mounting	no code
07	For flange connection (only NG 52)	F
08	Pilot control valve NG6 Proportional solenoid with detachable coil	6E
09	Supply voltage 24 V	G24
10	Without manual override	no code
10	With concealed manual override	N9 ¹⁾
11	Without special type of protection	no code
11	Sea water-resistant	J ²⁾
Pilot oil supply and return
12	External pilot oil supply, external pilot oil return	no code
	Internal pilot oil supply, external pilot oil return	E
	Pilot oil supply internal, pilot oil return internal	ET
	External pilot oil supply, internal pilot oil return	T
Electrical connection
13	Without mating connector, with connector according to DIN EN 175301-803, separate order	K4³⁾
13	Without mating connector, connector according to DIN EN 175201-804	K31 ³⁾
14	Without pressure reducing valve	no code
14	With pressure reducing valve ZDR 6 DP0-4X/40YM-W80 (fixedly set)	D3
15	NBR seals	M
15	FKM seals	V
16	Further details in the plain text	*
¹⁾	With version “J” → “N” instead of “N9”
²⁾	For data regarding the seawater-resistant version refer to data sheet 29115-M
³⁾	For version "J" = seawater-resistant only "K31"

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRZ Series Proportional Directional Valves Model List:

R900586302	4WRZ32E1-360-5X/6A24NETZ4/D3M
R900618472	4WRZ32E1-360-7X/6EG24N9TK4/D3M
R900550184	4WRZ32E1-520-5X/6A24N9ETZ4/D3M
R900513555	4WRZ32E1-520-5X/6A24N9Z4/M
R900588223	4WRZ32E1-520-5X/6A24NETZ4/D3M
R900500102	4WRZ32E1-520-5X/6A24NEZ4/D3M
R900587126	4WRZ32E1-520-5X/6A24NEZ4/M
R900247345	4WRZ32E1-520-5X/6A24NTK4/M
R900588851	4WRZ32E1-520-5X/6A24NTZ4/D3M
R900529245	4WRZ32E1-520-5X/6A24NTZ4/M
R900588030	4WRZ32E1-520-5X/6A24NZ4/D3M
R900586783	4WRZ32E1-520-5X/6A24NZ4/M
R900244192	4WRZ32E1-520-7X/6EG24N9K4/M
R900525505	4WRZ32E2-520-5X/6A24NETZ4/M
R900524026	4WRZ32E2-520-5X/6A24NZ4/D3M
R900587755	4WRZ32E2-520-5X/6A24NZ4/M
R900560819	4WRZ32E3-360-5X/6A24N9EZ4/M
R900245106	4WRZ32E3-520-5X/6A24N9EK4/D3M
R900569158	4WRZ32E3-520-5X/6A24N9EZ4/D3M
R900511410	4WRZ32E3-520-5X/6A24N9Z4/M
R900596381	4WRZ32E3-520-5X/6A24NETZ4/M
R900561900	4WRZ32E3-520-5X/6A24NEZ4/D3M
R900594266	4WRZ32E3-520-5X/6A24NEZ4/M
R900590101	4WRZ32E3-520-5X/6A24NZ4/M
R900567137	4WRZ32E360-5X/6A24N9TZ4/D3M
R900504608	4WRZ32E360-5X/6A24NEZ4/D3M
R900511389	4WRZ32E360-5X/6A24NEZ4/M
R900592069	4WRZ32E360-5X/6A24NZ4/M
R900617663	4WRZ32E520-5X/6A24N9K4/M
R900598738	4WRZ32E520-5X/6A24N9Z4/D3M
R900568238	4WRZ32E520-5X/6A24N9Z4/M
R900554547	4WRZ32E520-5X/6A24N9Z4/V
R900551279	4WRZ32E520-5X/6A24NEK4/V
R900587581	4WRZ32E520-5X/6A24NETZ4/D3M
R900593585	4WRZ32E520-5X/6A24NETZ4/M
R900589654	4WRZ32E520-5X/6A24NEZ4/D3M
R900504605	4WRZ32E520-5X/6A24NEZ4/M
R900513020	4WRZ32E520-5X/6A24NEZ4/V
R900595333	4WRZ32E520-5X/6A24NTZ4/D3M
R900587902	4WRZ32E520-5X/6A24NTZ4/M
R900594085	4WRZ32E520-5X/6A24NZ4/D3M
R900586835	4WRZ32E520-5X/6A24NZ4/M
R900509157	4WRZ32E520-5X/6A24Z4/M
R900616865	4WRZ32E520-7X/6EG24NJTK31/D3V
R900536338	4WRZ32EB360-5X/6A24NZ4/M
R900526599	4WRZ32EB520-5X/6A24NZ4/D3M
R900569581	4WRZ32EB520-5X/6A24NZ4/M
R900519492	4WRZ32W1-360-5X/6A24N9Z4/D3M
R900524375	4WRZ32W1-360-5X/6A24NEZ4/D3M
R900565216	4WRZ32W1-360-5X/6A24NTZ4/D3M
R900501479	4WRZ32W1-360-5X/6A24NTZ4/M
R900519127	4WRZ32W1-360-5X/6A24NZ4/D3M
R900598986	4WRZ32W1-360-5X/6A24NZ4/M
R900503075	4WRZ32W1-520-5X//M
R900516501	4WRZ32W1-520-5X/6A24N9ETZ4/D3M
R900511353	4WRZ32W1-520-5X/6A24N9EZ4/D3M
R900548010	4WRZ32W1-520-5X/6A24N9Z4/D3M
R900538653	4WRZ32W1-520-5X/6A24N9Z4/M
R900567756	4WRZ32W1-520-5X/6A24N9Z4/V
R900589648	4WRZ32W1-520-5X/6A24NETZ4/D3M
R900500686	4WRZ32W1-520-5X/6A24NETZ4/D3V
R900588848	4WRZ32W1-520-5X/6A24NEZ4/D3M
R900525975	4WRZ32W1-520-5X/6A24NEZ4/D3MR
R900597462	4WRZ32W1-520-5X/6A24NTZ4/M
R900588294	4WRZ32W1-520-5X/6A24NZ4/D3M
R900583517	4WRZ32W1-520-5X/6A24NZ4/M
R900548893	4WRZ32W1-520-5X/6A24NZ4/V
R900594450	4WRZ32W2-520-5X/6A24NZ4/M
R900533161	4WRZ32W3-360-5X/6A24NEZ4/D3MR
R900503594	4WRZ32W3-520-5X/6A24NETZ4/D3M
R900590299	4WRZ32W3-520-5X/6A24NEZ4/D3M
R900594658	4WRZ32W3-520-5X/6A24NEZ4/M
R900523512	4WRZ32W3-520-5X/6A24NTZ4/D3M
R900591710	4WRZ32W3-520-5X/6A24NZ4/D3M
R900568838	4WRZ32W360-5X/6A24N9ETZ4/D3M
R900550392	4WRZ32W360-5X/6A24N9Z4/V
R900510415	4WRZ32W360-5X/6A24NETZ4/M
R900505838	4WRZ32W360-5X/6A24NEZ4/M
R900591558	4WRZ32W360-5X/6A24NZ4/D3M
R900522574	4WRZ32W520-5X//M
R900548183	4WRZ32W520-5X/6A24EK4/M
R900519745	4WRZ32W520-5X/6A24N9ETZ4/D3M
R900590753	4WRZ32W520-5X/6A24N9ETZ4/M
R900516221	4WRZ32W520-5X/6A24N9EZ4/D3M
R900552664	4WRZ32W520-5X/6A24N9Z4/D3M
R900553543	4WRZ32W520-5X/6A24N9Z4/V
R900548112	4WRZ32W520-5X/6A24NETK4/M
R900503464	4WRZ32W520-5X/6A24NETZ4/D3M
R900588342	4WRZ32W520-5X/6A24NETZ4/M
R900592530	4WRZ32W520-5X/6A24NEZ4/D3M
R900589561	4WRZ32W520-5X/6A24NEZ4/M
R900597922	4WRZ32W520-5X/6A24NZ4/D3M
R900587123	4WRZ32W520-5X/6A24NZ4/M
R900588989	4WRZ32W520-5X/6A24Z4/M
R900616468	4WRZ32W520-7X/6EG24N9EK4/D3V
R900617302	4WRZ32W520-7X/6EG24N9EK4/M
R900616528	4WRZ32W6-360-7X/6EG24N9EK4/D3M
R900246879	4WRZ32W6-520-7X/6EG24N9EK4/D3M
R900249353	4WRZ32W6-520-7X/6EG24N9EK4/M
R900249813	4WRZ32W6-520-7X/6EG24N9TK4/M
